Description
PRODUCT OVERVIEW

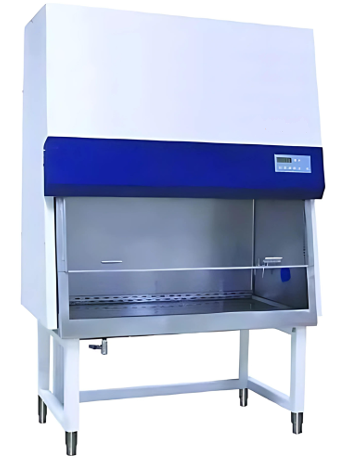

A freestanding Class II Type A2 Biosafety Cabinet designed for operator, product, and environmental protection. Features a stainless steel 304 working surface, high-efficiency HEPA filtration, vertical laminar airflow, and compliance with international quality and safety standards. Ideal for microbiological and biomedical applications requiring a clean and safe working environment.
KEY FEATURES & BENEFITS
Classification & Airflow
- Class II Type A2 Biosafety Cabinet
- Vertical airflow pattern
- 70% air recirculated through HEPA filter
- 30% air exhausted
- Nominal downflow velocity: 55 feet per minute
Working Area
- Material: Stainless Steel 304 grade
- Dimensions: Width 4 ft × Depth 2 ft × Height 2 ft
- High illumination: ≥ 900 lux
Filtration System
- HEPA filter efficiency: 99.99% for 0.3 micron particles
- ULPA filter: Not applicable
Performance & Comfort
- Noise level: 62 dB
- Quiet operation suitable for laboratory environments
Construction & Dimensions
- Approximate Exterior Dimensions: 1500 H × 1300 W × 800 D (mm)
- Approximate Interior Dimensions: 800 H × 1200 W × 500 D (mm)
- Freestanding design
Quality & Certifications
- Manufactured under ISO 9001 & ISO 13485 quality management systems
- Compliant with IEC 60601 or BIS equivalent standards
TECHNICAL SPECIFICATIONS SUMMARY
| Parameter | Specification |
| Type | Class II Type A2 |
| Installation | Freestanding |
| Working Surface | Stainless Steel 304 |
| Working Area (W × D × H) | 4 ft × 2 ft × 2 ft |
| Light Intensity | ≥ 900 lux |
| Downflow Velocity | 55 fpm |
| Airflow Pattern | Vertical (70% recirculated / 30% exhausted) |
| HEPA Filter Efficiency | 99.99% @ 0.3 µm |
| Noise Level | 62 dB |
| Exterior Dimensions (approx.) | 1500 H × 1300 W × 800 D mm |
| Interior Dimensions (approx.) | 800 H × 1200 W × 500 D mm |
| Quality Standards | ISO 9001, ISO 13485, IEC 60601 / BIS equivalent |
