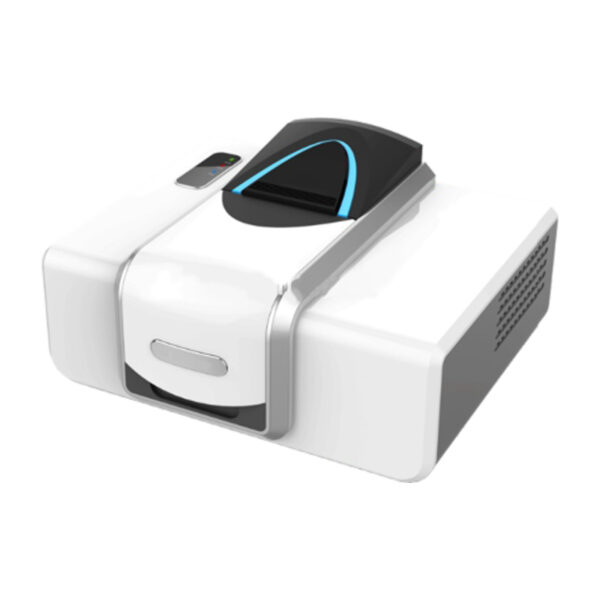

FT-IR SPECTROMETER

Description

• New type cube-comer Michelson interferometer features smaller size and more compact structure, providing higher stability and less sensitive lo vibrations and thernal variations than conventional Michelson interterometer.

• Fully sealed damp and dusl proof interferometer, adopting high performance, long lifetime sealing material and desiccator, ensures higher adaptability to the environment and increases accuracy and reliability in operation. Viewable Mindow for silica gel enables easy observation and replacement.
  Isolated IR source and large space heal dissipation chamber design provides higher thermal stability. Stable interference is obtained wilhout the need of dynamic adjustment.
• High intensity IR source adopts a reflex sphere lo obtain even and stable IR radiation.
• Cooling fan stretch suspending design ensures good mechanical slability.
• Super wide sample compartment provides more flexibility to accommodate various accessories.
• The application of programmable gain amplifer, high accuracy A/D converter and embedded computer improves the accuracy and reliability of the whole system.
• The spectrometer connects to PC via a USB port for automatic control and data communication, fully realizing plug-and-play operation.
• Compatible PC control with user friendly, rich function software enables easy, convenient and flexible operation. Spectrum collection, spectrum conversion, spectrum processing, specuum analyzing, and spectrum output function etc. can be performed.
• Varlous special IR libraries are available for routine search. Users can also add and maintain the libranes or set up new libraries by themselves.
• Accessories such as Defused/Specular Reflection, ATR, Liquid cell, Gas cell, and IR microscope etc can be mounted in the sample compartment.

SPECIFICATION:

• Spectral Range: 7800 to 350 cm-1
• Resolution: Better than 0.85cm-1
  Better than 0.5cm-‘
• Wavenumber Precision: 10.01cm-1

• Scanning Speed: 5-step adjustable for different applications
• Signal to noise ratio: better than 15,000:1 (RMS value, at 2100cml, resolulion: 4cm 1, detector: DTGS, 1 minute data collection)
• Beem splitter: Ge coated KAr
• Infrared Source: Air-cooled, high efficlency Refex Sphere module

• Detector: DTGS
• Dala system:Compatible computer
• Software: FT-IR software conlains all routines needed for basic spectrometer operations, including library search, quantilalion and spectrum export

• IR Library: 11 IR libraries included
• Dimensions: 54x52x28cm
• Weight: 28kg
