Description

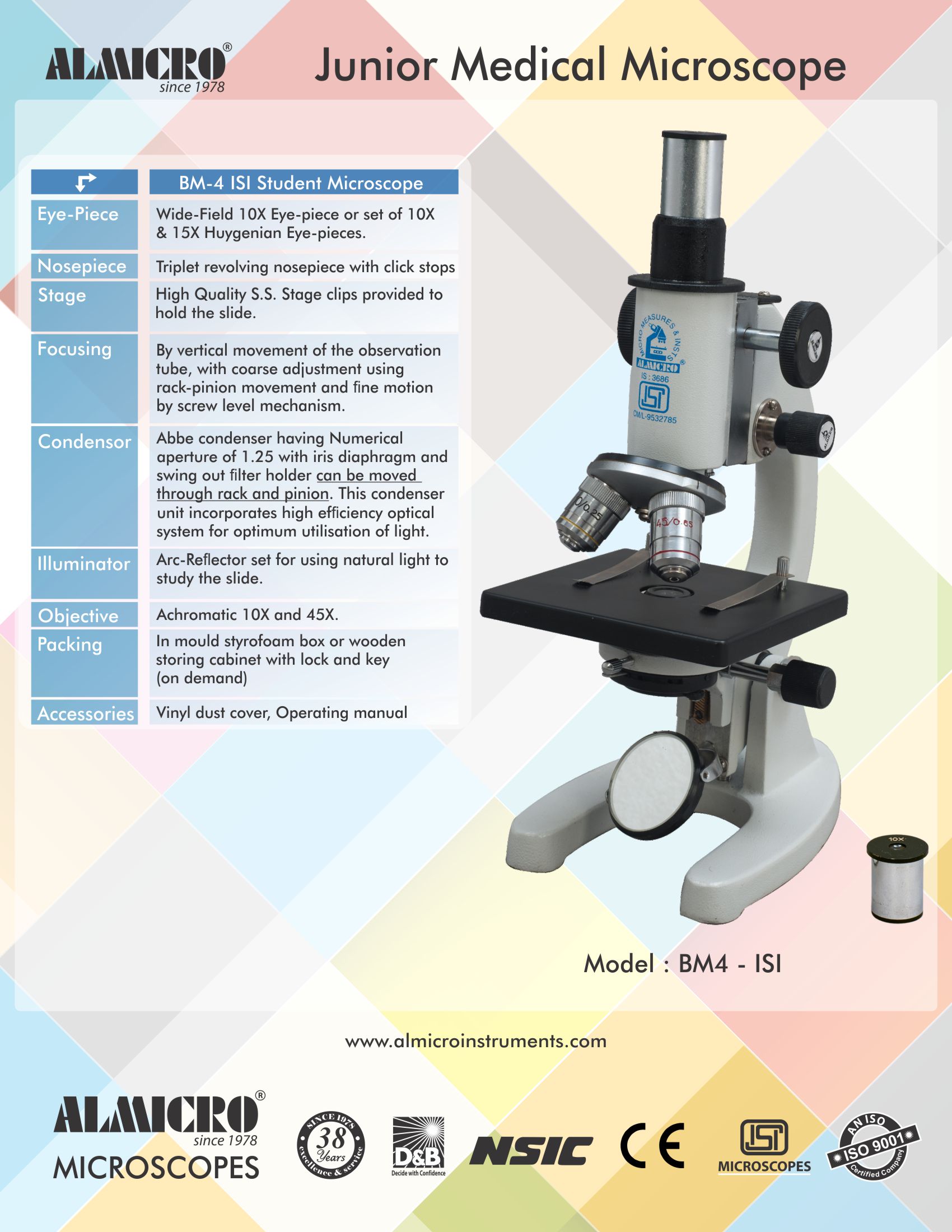

Technical Specification Table
| Specification | Details |
|---|---|
| Eye-Piece | Wide-field 10X or set of 10X & 15X Huygenian |
| Nosepiece | Triplet revolving nosepiece with click stops |
| Stage | High-quality stainless steel stage with slide clips |
| Focusing | Vertical movement of observation tube; coarse by rack-pinion, fine by screw-lever |
| Condenser | Abbe condenser NA 1.25, iris diaphragm, swing-out filter holder, rack-and-pinion movement |
| Illuminator | Arc-reflector for natural light |
| Objectives | Achromatic 10X and 45X |
| Packing | Styrofoam box or wooden cabinet with lock (on demand) |
| Accessories | Vinyl dust cover, operating manual |
Key Features
• Wide-field 10X eyepiece or optional 10X & 15X Huygenian eyepieces
• Triplet revolving nosepiece with click stops for easy objective changes
• High-quality stainless steel stage with slide clips
• Coarse and fine focusing via vertical observation tube movement
• Rack-pinion coarse adjustment and screw-lever fine motion
• Abbe condenser NA 1.25 with iris diaphragm and swing-out filter holder
• Condenser movable through rack-and-pinion for precision light control
• Arc-reflector set for using natural light
• Achromatic objectives 10X and 45X for clear, bright imaging
• Packed in styrofoam box or optional wooden cabinet with lock
• Accessories include vinyl dust cover and operating manual
Working Principle

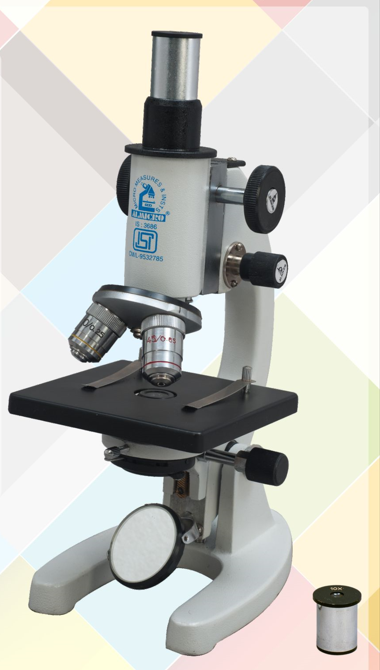

The BM–4 microscope directs light from the arc-reflector through the condenser onto the specimen. The objectives magnify the image, and the wide-field eyepiece enlarges it for observation. Users adjust focus using coarse and fine knobs while positioning the slide on the stage. The Abbe condenser and iris diaphragm allow precise control of illumination and contrast, producing bright, sharp, and clear images ideal for student learning and laboratory experiments.
Use Cases
• School and college biology labs for teaching students
• Student practical sessions in microscopy
• Educational demonstrations of cells, tissues, and microorganisms
• Training laboratories for beginner researchers
• Hobbyist or home study of biological specimens
