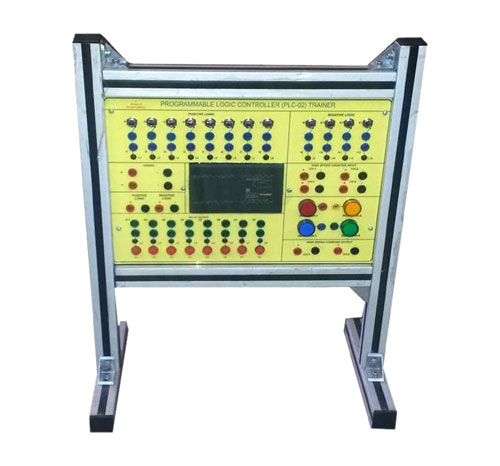

PLC TRAINER (VERSAMAX)
| Product Name: | VERSAMAX |
|---|---|
| About PLC | Micro 20; (12) 24 VDC In, (8) Relay Out 2.0 amps, 24VDC Power Supply |
| Number of Discrete Inputs/Outputs: | 12 In / 8 Out (Supports 4 Expansion Units) |
| Number of Analog Inputs/Outputs: | Supports up to 4 analog expansion units (16 analog in/ 8 analog out) |
| Physical I/O Maximum: | 132 |
| User Program Logic Memory (Words): | 24 K |
| Registers (Words): | 32 K |
| Analog Pots for Data Adjustment: | No |
| Serial Port Connector Type: | RJ-45 (RS-232) port 1 and optional port 2 DB-15 (RS-485) or RJ-45 (RS-232) or USB or RJ-45 (Ethernet 10/100Mbit) |
| Protocols: | Both Ports: SNP, SNP X (Breakless),RTU Master and Slave 2 and 4 wire RTU Slave), SNP Master, Serial Read and Write; Ethernet SRTP, Modbus TCP (server) and Tunneling |
| Power Voltage: | 24 VDC |
| Input Power Supply Rating: | 10 Watts |
| Input Device Voltage: | 24 VDC |
| Maximum Type A and B Counters: | N/A |
| Output Control Voltage: | Relay Out |
| Relay Maximum Resistive Load Rating: | 2 Amps at 24 VDC and 240 VAC |
| Maximum Number of PWM/Pulse Outputs: | 4 Type A and 1 Type B @ 100Khz (32 bit) |
| 24 VDC User Power for Sensors: | 435 mA |
| Dimensions (WxHxD) mm: | 150x90x76 |
| Programming Software: | Proficy Machine Edition Logic Developer 5.0, Service Pack 3, Hotfix |
