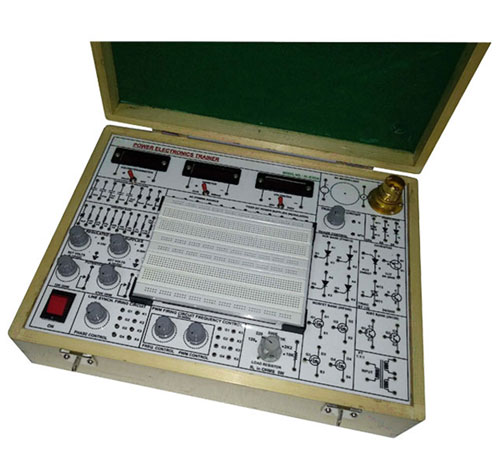

POWER ELECTRONICS TRAINER (PET-V2)

SCOPE OF LEARNING:

  • To study the characteristics of SCR and plot it’s V-I Characteristics.
  • To study the Gate control characteristics of SCR and It’s graph.
  • To study the characteristics of UJT
  • To study the characteristics of MOSFET.
  • To study the characteristics of IGBT.
  • To study the characteristics of DIAC and plot it’s V-I Characteristics curve.
  • To study the V-I characteristics of TRIAC.
  • To study the characteristics of PUT.
  • To study the Resistor Triggering circuit.
  • To study the Resistor-Capacitor Triggering Circuit (Half wave).
  • To study the Resistor-Capacitor Triggering Circuit (Full wave).
  • To study the triggering of SCR using UJT.
