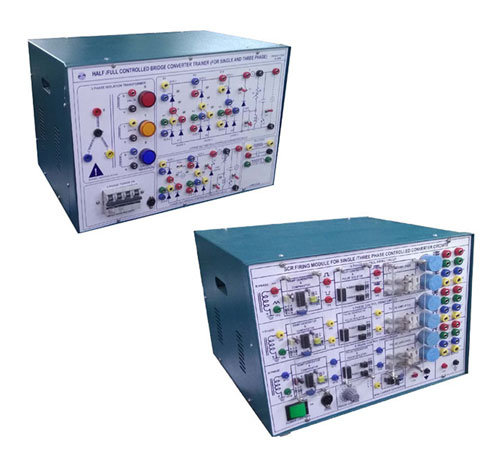

SCR SINGLE & THREE PHASE HALF-FULL CONTROLLED BRIDGE CONVERTER
- Protection Cover
- Front panel built with high class insulated Printed Circuit Board sheet with well printed circuits and symbols.
- MCB for Short Circuit protection
- Instruction manual.
- Connections are brought out through 4mm Colored Sockets.
- Patch Cords 4mm.
- The trainer is housed in Metal cabinet.
- Size of the trainer set 14″X12″ and 18″X12″
Description
Specifications
Power supplies:
- Power Supply +15Vat 150mA
- Isolated Supply 0-110V or 24V AT 1A.
- Operated on Mains power 415V, 50Hz +10%
Components are mounted on the panels are:
- SCR TYN604
- Diode 1N5408 and BA159
- AC Phase Control by Gate Control Firing Circuit R, Y and B Phases.
- Separate Circuits for Three Phase and Single Phase.
- Resistive Load (Lamp and Resistor 20W)
- Inductive Load (Inductor)
