• Rotary switch for selections of different input voltage & linearity coil for AC.
  • Bridge rectifier to convert AC into DC
  • DC filtration circuit is given to filter the impurities is. AC components.
  • High frequency transformer and high frequency transistor (BU 508) for switching action.
  • Feed back/ comparator circuit to maintain output voltage constant I.e. +10% on load.,
  • Two meters are provided on the front panel to measure the DC voltage & current.
  • Two Bulb holders are mounted on the front panel to connect resistive (bulb) load across the output.
  • Fuse for Short Circuit protection

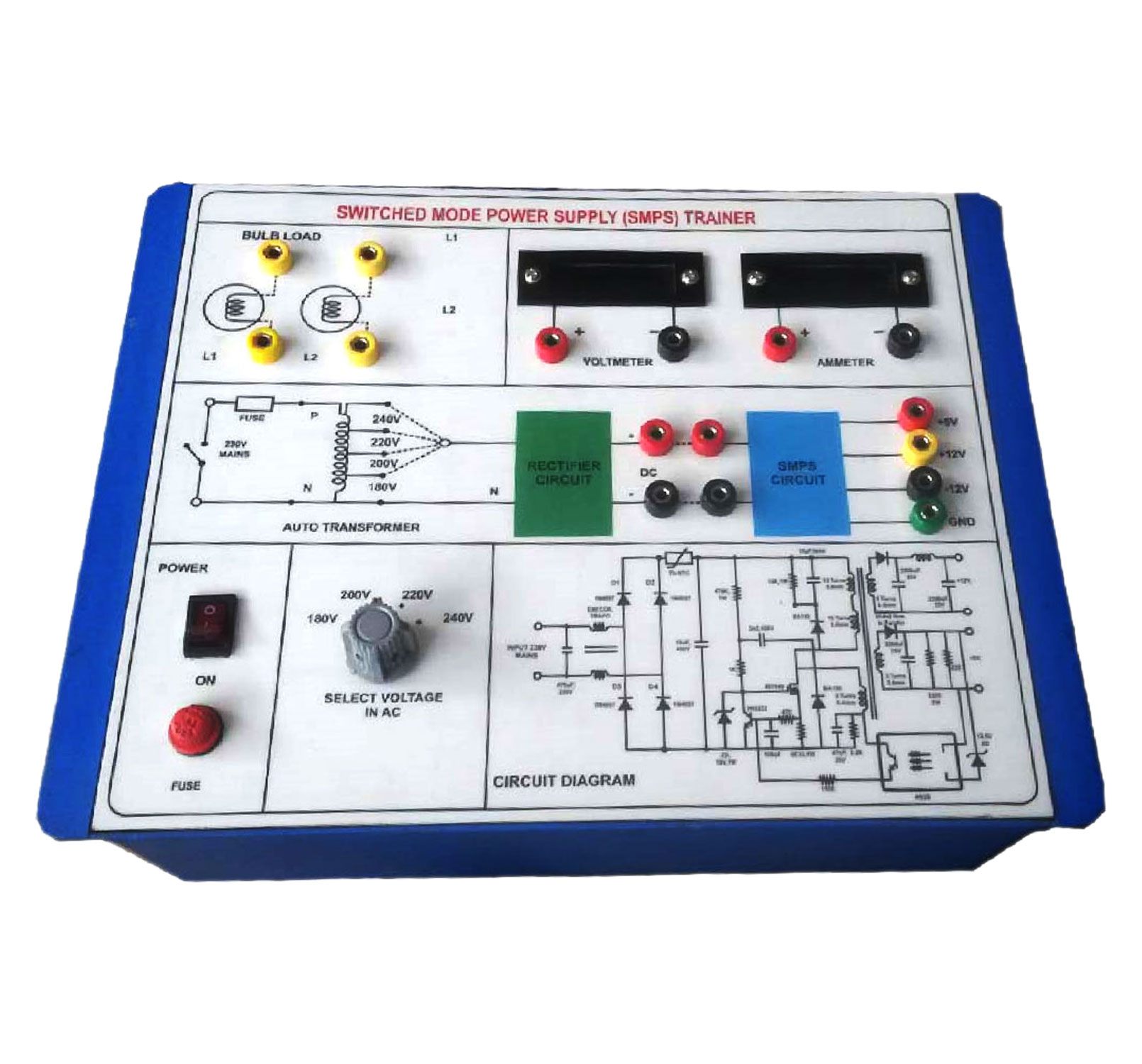

  • Front panel built with high class insulated Printed Circuit Board sheet with well printed circuits and symbols.
  • Instruction manual.
  • Patch Cords 4mm.
  • High Voltage Test Points are Provided With 4mm Safety Sockets
  • The trainer is housed in Plastic cabinet.
  • Size of the trainer set 12″X10″



Power Supplies:

  • Power Supply 180-200-220-240V, 150VA
  • DC Power Supply +5V, 1A
  •  DC Power Supply +15V, 1A
  • DC Power Supply -15V, 250mA
  • Operated on Mains power 230V, 50Hz +10%

Components are mounted on the panels are:

  • Digital Meter (For Voltage and Current)
  • Socket for Output
  • Low Voltage Bulb as Load


  • NO
