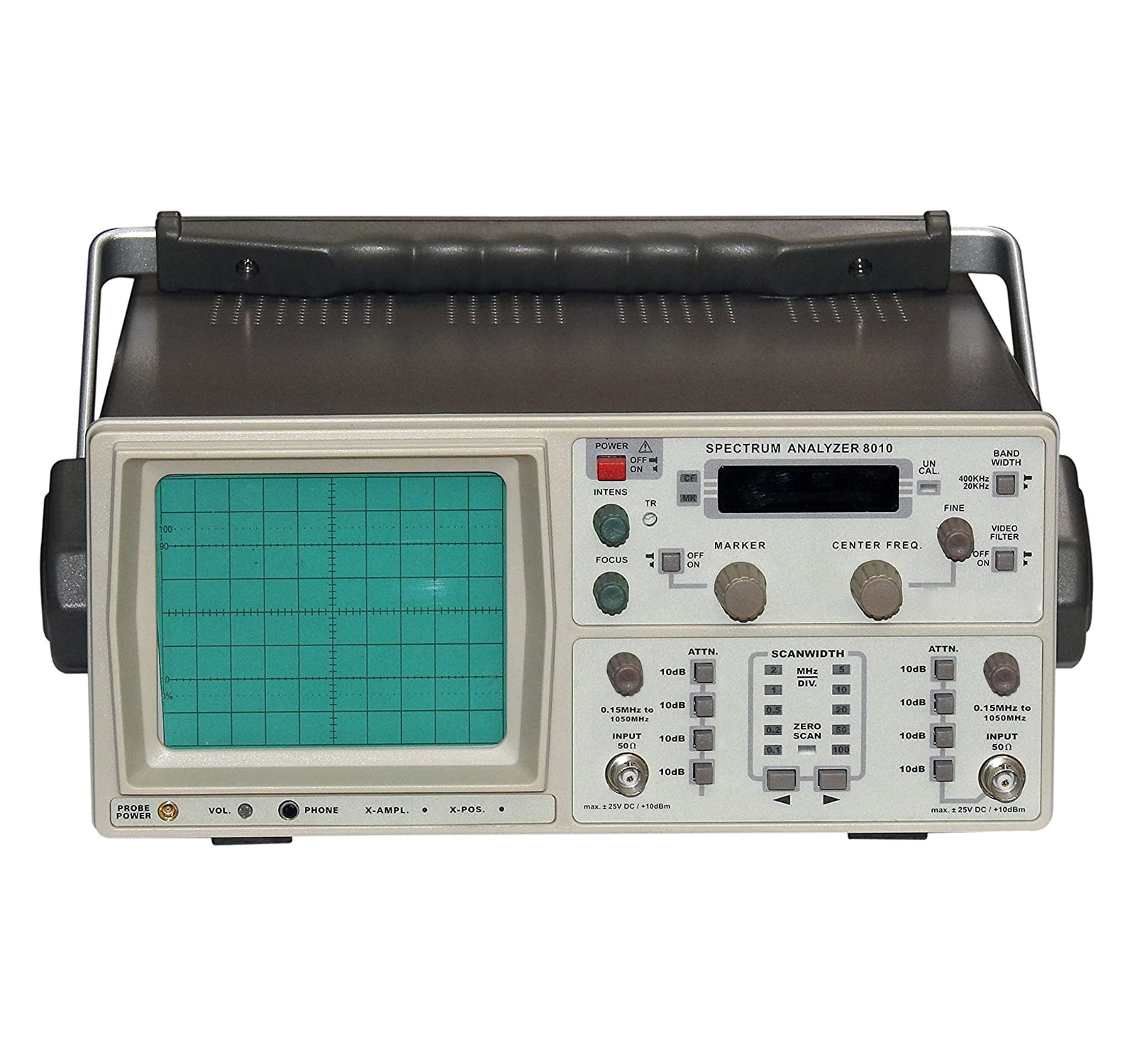

Spectrum Analyzer is used for the early test in the development of electrical products, troubleshooting of CATV/MATV system as well as the test and trouble diagnosis of cellular phone/paging system.
Frequency Range
150KHz to1000MHz
4.5 Digit Display
Center & Marker Frequency, 0.1MHz Resolution
Amplitude Range
-100dBm to +13dBm
Filters
20KHz, 250KHz & Video Filter
AM/FM Demodulator
Included
Full Range Built-in
0.15MHz to 1000MHz, Tracking Generator
Output Power
+1dBm to -50dBm (50ohms)
Optional near field sniffer probe set to locate cable and PC board Emission “Hot Spot, evaluate EMC problem at the breadboard and Prototype level. Ideal solution for RF leakage/radiation detection
