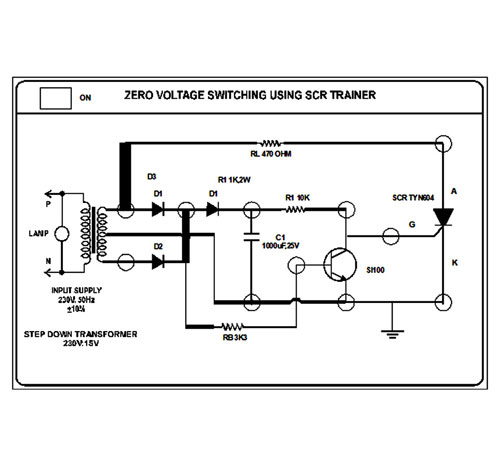

ZERO VOLTAGE SWITCHING USING SCR

  • Fuse for Short Circuit protection
  • Front panel built with high class insulated Printed Circuit Board sheet with well printed circuits and symbols.
  • Instruction manual.
  • Patch Cords 4mm.
  • High Voltage Test Points are Provided With 2mm Sockets
  • The trainer is housed in ABS Plastic Cabinet.
  • Size of the trainer set 12″X8″
Category:

Description

Specifications

Power Supplies:

  • Isolated AC Power Supply 0-15V, 250Ma
  • Operated on Mains power 230V, 50Hz +10%

Components are mounted on the panels are:

  • Diode 1N4007
  • Transistor SL100
  • Load Resistor
  • SCR TYN604
  • Capacitors and Resistors

Accessories

  • NO
