Description
Features & Specifications:
Body:
Upright microscope stand with integrated image capture button for
direct imaging.Fly Eye Lens optical system for even illumination and
superior image quality.
Optical System:
Advanced CFI60 Infinity Optical System ensuring high contrast and
resolution.
Illumination:
LED illumination with a lifetime of 60,000 hours, providing bright and
stable light for extended operation.
Eyepiece:
Pair of 10X widefield eyepieces with 22 mm Field of View (FOV) for
comfortable and clear observation.
Focusing:
Coaxial coarse and fine focusing mechanism for smooth operation.
Focusing stroke: 30 mm.
Coarse drive: 9 mm per rotation.
Fine drive: 0.1 mm per rotation.

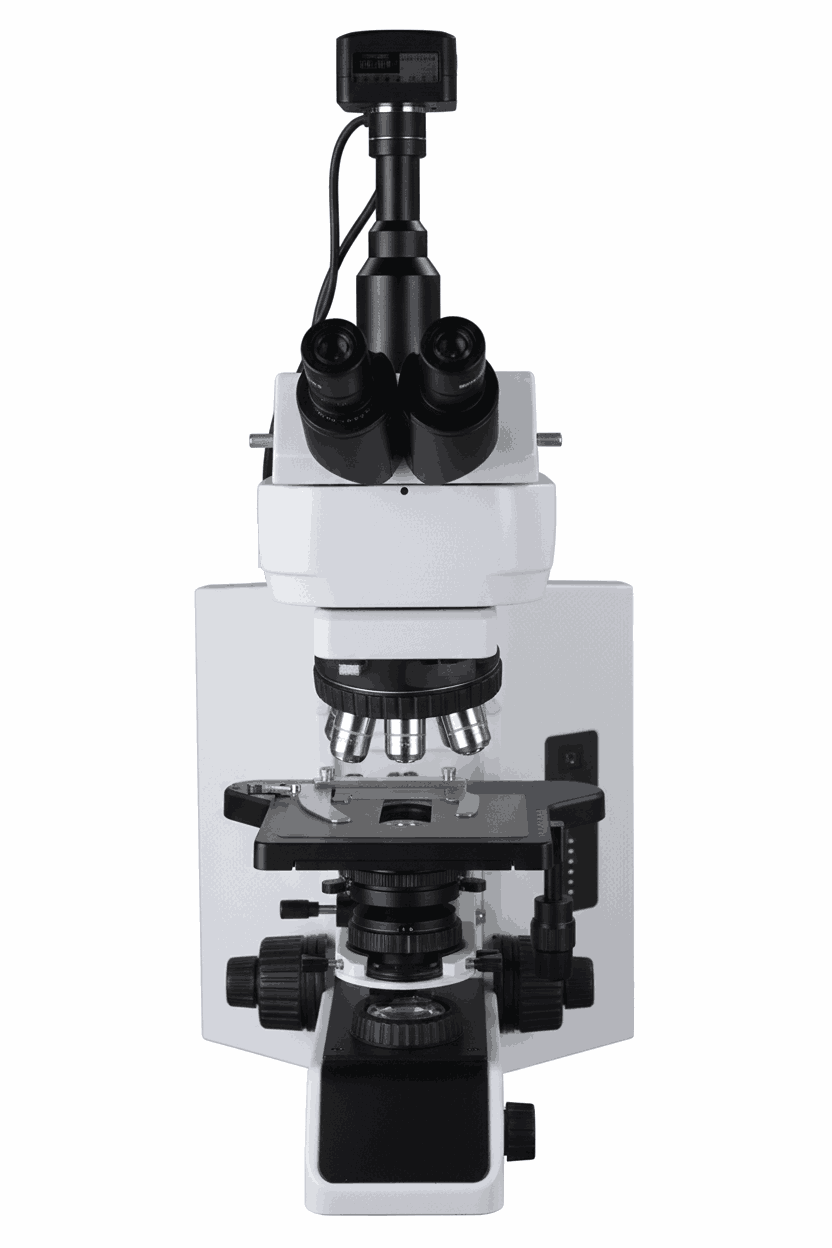

Observation Tube:
Trinocular viewing head with light distribution ratio 100:0 / 0:100
(FOV 22 mm).
Allows simultaneous observation and imaging.
Nosepiece:
Sextuple (6-position) revolving nosepiece with precision alignment
for multi-objective configuration.
Stage:
Right-hand controlled mechanical stage with dual slide holder.
Cross travel: 78 mm (X) × 54 mm (Y) ensuring smooth and precise
movement.
Condenser:
Abbe Condenser (N.A. 0.9) suitable for brightfield and fluorescence
observation.
Observation Method:
Supports Brightfield and Fluorescence modes for versatile imaging
applications.
Objectives:
Plan Achromat 4X (N.A. 0.10, WD 30 mm)
Plan Achromat 10X (N.A. 0.25, WD 10.5 mm)
Plan Achromat 40X (N.A. 0.65, WD 0.56 mm)
Plan Achromat 100X Oil (N.A. 1.25, WD 0.20 mm)
Provision for two additional objectives for future expansion.
Fluorescence Attachment:
LED Fluorescence Illumination System with 4-position filter turret.
Supplied with DAPI (Blue), FITC (Green), and TRITC (Red) filters for high-quality fluorescence imaging.
Warranty: Comprehensive 3-Year Warranty covering manufacturing defects and service support.
Microscope Body – Part No: AXL-BODY-01
Objective 10X – Part No: AXL-OBJ-10X
Fluorescence Attachment – Part No: AXL-FLUO-01
