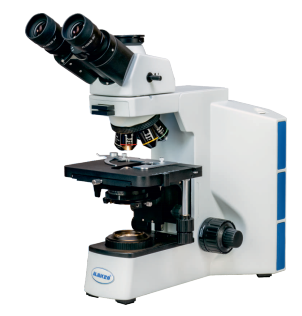

FXL Trinocular Microscope

Description

FXL Trinocular Microscope – Technical Specification Table

Category	Specifications
Microscope Body & Frame	• Research-grade ergonomic microscope body with transmitted light• Upgradable to 6-position fluorescence turret• Infinity-corrected optical system• Magnification range: 40x–1000x
Focusing System	• 2-step focus drive with coarse & fine adjustments• Adjustable focus torque• Focus stop with 25 mm stroke• Fine graduation: 1 μm
Eyepiece Tube	• Trinocular eyepiece tube• Three-way light path selector: 100:0, 50/50, 20:80, 0:100• Field of View (FOV): 22 mm
Eyepieces	• Pair of 10x eyepieces with FOV 22 mm• Comfortable for long-duration observation
Illumination	• High-intensity transmitted LED illumination• Supports Brightfield, Polarizing, and upgradeable DIC• LED lifetime: 100,000 hours
Condenser	• Universal phase turret condenser• Suitable for 4x–100x objectives• 5–6 position turret for phase and contrast applications
Nosepiece	• Six-position revolving nosepiece• Analyzer slot included for polarizing work
Polarization Features	• Integrated Polarizer & Analyzer for polarization microscopy
Mechanical Stage	• XY right-handle mechanical stage• Two-slide holder• Smooth movement for precise sample control
Objectives (Plan Apochromat Series)	• 4x NA 0.10, WD 18.0 mm• 10x NA 0.25, WD 10 mm• 20x NA 0.40, WD 1.2 mm• 40x NA 0.65, WD 0.6 mm• 100x Oil NA 1.25, WD 0.15 mm• All objectives engraved with type, NA, and manufacturer
Upgradeability	• Onsite upgradeable to 6–8 position fluorescence turret
Included Accessories	• Dust cover• Lens cleaning kit• Cleaning solution

Working Principle

The FXL Trinocular Microscope operates on an infinity-corrected optical system, which allows light from the specimen to pass through the objective and be focused into parallel rays. These rays are then directed through the trinocular eyepiece tube, producing a sharp, distortion-free image.

The microscope uses a two-step focusing system with coarse and fine adjustments, allowing precise control over focus. Its transmitted LED illumination ensures bright, even lighting, while optional phase, DIC, or polarization techniques enhance contrast and reveal fine structural details.

Plan Apochromat objectives maintain color accuracy and high resolution across the entire magnification range. The mechanical XY stage allows accurate specimen positioning, and the trinocular port supports simultaneous imaging or camera attachment for documentation.

---

Purpose / Applications

The FXL Trinocular Microscope is designed for advanced research, clinical, and industrial applications, including:

• Biological Research: Observation of cells, tissues, and microorganisms.

• Pathology & Clinical Labs: Accurate sample analysis and diagnostics.

• Material Science & Metallurgy: Inspection of metals, minerals, and composites.

• Polarization Studies: Studying birefringent materials using polarizers and analyzers.

• Education & Training: For universities and advanced laboratory teaching.

• Documentation & Imaging: Using the trinocular port to capture images or videos.

• Industrial QC: Precise inspection of microelectronics, microfabrication, and fine components.

This microscope ensures high-resolution, clear, and accurate imaging while offering flexible upgrade options for fluorescence or advanced contrast techniques, making it a versatile tool for research and laboratory professionals.
