Description
Main Body:

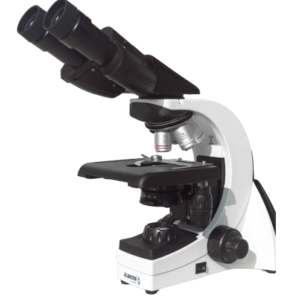

The upright microscope stand features a precision-engineered design that integrates both LED
transmitted and reflected illumination for versatile imaging applications.
Z-drive focusing mechanism with fine drive knob on the left and fine drive disk on the right.
Built-in power unit for stable and compact performance.
15 mm Z-focus range for accurate focusing control.
Ergonomic one-hand specimen holder with spring lever on the left side.
Built-in snap button on both sides of the stand for convenient image capture.
Light manager for both TL and RL light paths ensuring optimal illumination.
Compatible with both LED and Halogen light sources in one stand.
Independent and memory-based intensity control for each FL-LED channel.
Binocular Phototube:
Binocular phototube with 30° inclination and 23 mm field number (50:50 splitting ratio).
Microscope stand includes provision to attach a camera without replacing the binocular tube.
Eyepieces:
Widefield 10X eyepieces, 23 mm field of view.
±5 diopter adjustment with comfortable rubber eyecups for extended observation.
Nosepiece:
Revolving 5-position encoded nosepiece for smooth and accurate objective change.
Equipped with anti-collision mechanism to protect objectives and samples.
Transmitted Illumination:
10W LED illumination with built-in shutter for transmitted light.
LED lifetime exceeds 100,000 hours, providing maintenance-free operation.
Light Management & ECO Mode:
Automatic brightness control ensures uniform illumination at all magnifications.
ECO Mode automatically switches off illumination after 15 minutes of inactivity, saving energy and
extending LED life.
Smart Documentation:
Built-in Snap Buttons on both sides for direct image and video capture without a computer.
Integrated memory card slot allows easy saving and transfer of captured images and recordings.
Mechanical Stage:
Precision mechanical stage, size 75 × 30 mm, with hard-coated anodized surface.
Right-hand drive with adjustable torque setting.
Single specimen holder designed for one-hand operation.
Objectives:
High-quality Plan Achromat Objectives provide clear, high-contrast imaging across the full field of view:
5x / 0.12
10x / 0.25
20x / 0.45
40x / 0.65 (Phase)
100x / 1.25 Oil (Phase)
Condenser:
5-position turret condenser accommodating Brightfield, Phase Contrast, and Darkfield techniques.
