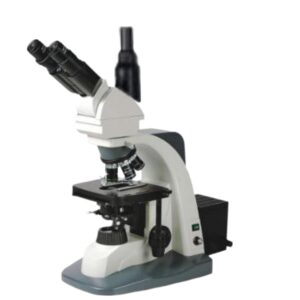

Phase Contrast Microscope with FXL Bino

Description

Specification	Details
Microscope Stand	Upright stand with LED illumination and Phase Contrast observation system
Observation Tube	Binocular phototube, 25° inclined
Interpupillary Distance	Adjustable from 48 mm to 75 mm
Focusing System	Coaxial coarse and fine focusing knobs on both sides
Power Unit	Integrated power supply with high & low voltage protection
Auto Light-Off	Automatic illumination switch-off during non-usage
Illumination System	High-intensity, uniform LED illumination
Light Intensity Control	Adjustable illumination intensity
Nosepiece	Quintuple revolving nosepiece with anti-collision mechanism
Objectives	Plan Achromat 4x, 10x, 20x, 40x, 100x (Oil Immersion)
Phase Contrast Compatibility	10x, 20x, 40x & 100x objectives
Eyepieces	Wide-field 10x & 20x, FOV > 20 mm
Diopter Adjustment	±5 diopter with rubber eyecups
Mechanical Stage	Precision mechanical stage, hard-coated anodized, non-corrosive
Stage Movement	Smooth XY movement with right-hand control knobs
Slide Holder	Adjustable-width locking slide/specimen holder
Stage Ruler	Integrated measurement ruler on stage edge
Vibration Control	Vibration-free design for stable observation
Measurement Tools	Supplied with ocular micrometer & stage micrometer
Accessories	Standard accessories, cables, lenses & dust cover
Warranty	3 Years Comprehensive Warranty
Maintenance	AMC & CMC available for 3 additional years (excluding taxes)

Upright microscope stand with integrated LED illumination and Phase Contrast observation system
Binocular phototube with 25° inclination for ergonomic viewing comfort
Adjustable interpupillary distance from 48 mm to 75 mm
Coaxial coarse and fine focusing knobs on both sides for precise focus control
Quintuple revolving nosepiece with anti-collision mechanism for objective safety
Plan Achromat objectives (4x, 10x, 20x, 40x, 100x oil immersion)
Phase Contrast compatible objectives: 10x, 20x, 40x, and 100x
High-intensity, uniform LED illumination for consistent brightness
Adjustable light intensity control as per observation requirement
Precision mechanical stage made of hard-coated, non-corrosive anodized material
Smooth XY stage movement with right-hand control knobs
Adjustable-width locking slide/specimen holder
Integrated stage ruler for accurate slide positioning
Wide-field 10x and 20x eyepieces with FOV > 20 mm
±5 diopter adjustment with rubber eyecups for user comfort
Vibration-free design for stable and sharp image observation
Supplied with ocular micrometer and stage micrometer for measurements
Integrated power supply with high and low voltage protection
Auto light-off feature to save energy and extend LED life
Supplied with standard accessories including cables, lenses, and dust cover
3 Years Comprehensive Warranty with AMC & CMC options available

LED light source illuminates the specimen uniformly
Phase contrast system converts phase differences into visible contrast
Light passes through condenser and phase-compatible Plan Achromat objectives
Objectives magnify transparent and unstained specimens with enhanced clarity
Binocular eyepieces further enlarge the image for comfortable observation
Coarse focusing enables rapid initial focus adjustment
Fine focusing allows precise sharpening of specimen details
Mechanical stage provides smooth XY movement for accurate slide scanning
Adjustable illumination intensity and vibration-free design ensure clear and stable images
