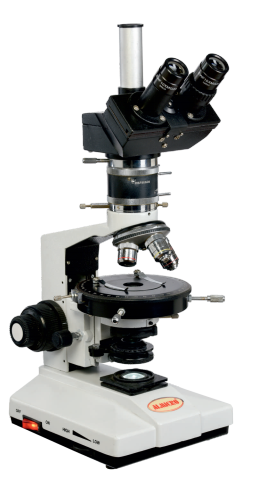

PM-12 TRINOCULAR MICROSCOPE

Description

Features:
1. Ergonomic design for prolonged use with low operator fatigue; anti-vibration rubber feet for stability.
2. Dust-proof and maintenance-free optical path to ensure long-term performance without frequent servicing.
3. In-built USB 3.0 connectivity for fast data transfer from camera to computer.
4. Pre-calibrated software with auto white balance, auto exposure, and image stitching functions.
5. Capability for live image display on large screen/projector for teaching or group discussions.
6. Built-in safety features to protect LED from overcurrent and overheating.
7. Energy-efficient design with power consumption less than 30W.
8. Shock-proof and scratch-resistant stage coating for durability.
9. All optics anti-fungal treated for tropical climate conditions.
10. Supplied with dust cover, immersion oil, cleaning kit, and instruction manual.

Technical Specifications:
1. Research Microscope stand for Polarization for transmitted light with long-life LED illumination; dovetail for interchangeable stages; adjustable height stop and torque of focusing; mains cable with stabilized power supply 90–250V, 50/60Hz.
2. Lamp housing for LED illumination with constant colour temperature; LED life of 100,000 hours.
3. Quintuple centrable revolving nosepiece; each position centrable.
4. Three-step focus drive – coarse / medium / fine.
5. Infinity Corrected and Harmonic Compensated (HC) Optical System.
6. Stand with integrated filter magazine for transmitted light filters with Daylight filter DLF (conversion filter), 40 mm, and Grey filter N 16 (6.3% permeability), 40 mm.

7. Analyzer – 180° rotatable for transmitted light.
8. Lambda plate and quarter wave plate for transmitted light.
9. Rotating stage, interchangeable, with clamp; two verniers (0.1°); anodized surface; 178 mm diameter;boreholes for stage accessories; centerable condenser holder with left/right levelling; adjustable Z-stop; object guide stage for holding samples.
10. Trinocular Pol phototube with fixed photo tube; 30° viewing angle; interpupillary adjustment 55–75 mm;constant focus; automatic right eyepiece/graticule adjustment; beam splitter position vis/phot:
50/50% fixed.
11. Universal condenser for brightfield and polarization; switchable condenser head; colour-coded aperture diaphragm for easy adjustment; suitable for brightfield and qualitative polarization.
12. Polarizer for transmitted light, 360° rotatable / swing-out.
13. Eyepiece pair 10x/22 (one with reticule for polarization), focusable and adjustable; extra pair of 10x/22 eyepieces.
14. High-resolution objectives: 5x/0.12, 10x/0.25, 20x/0.40, 40x/0.65, and 100x/1.25 oil, suitable for polarization;each engraved “POL”.
15. C-mount adapter 0.55x HC.
16. Warranty: 1-year from installation.
