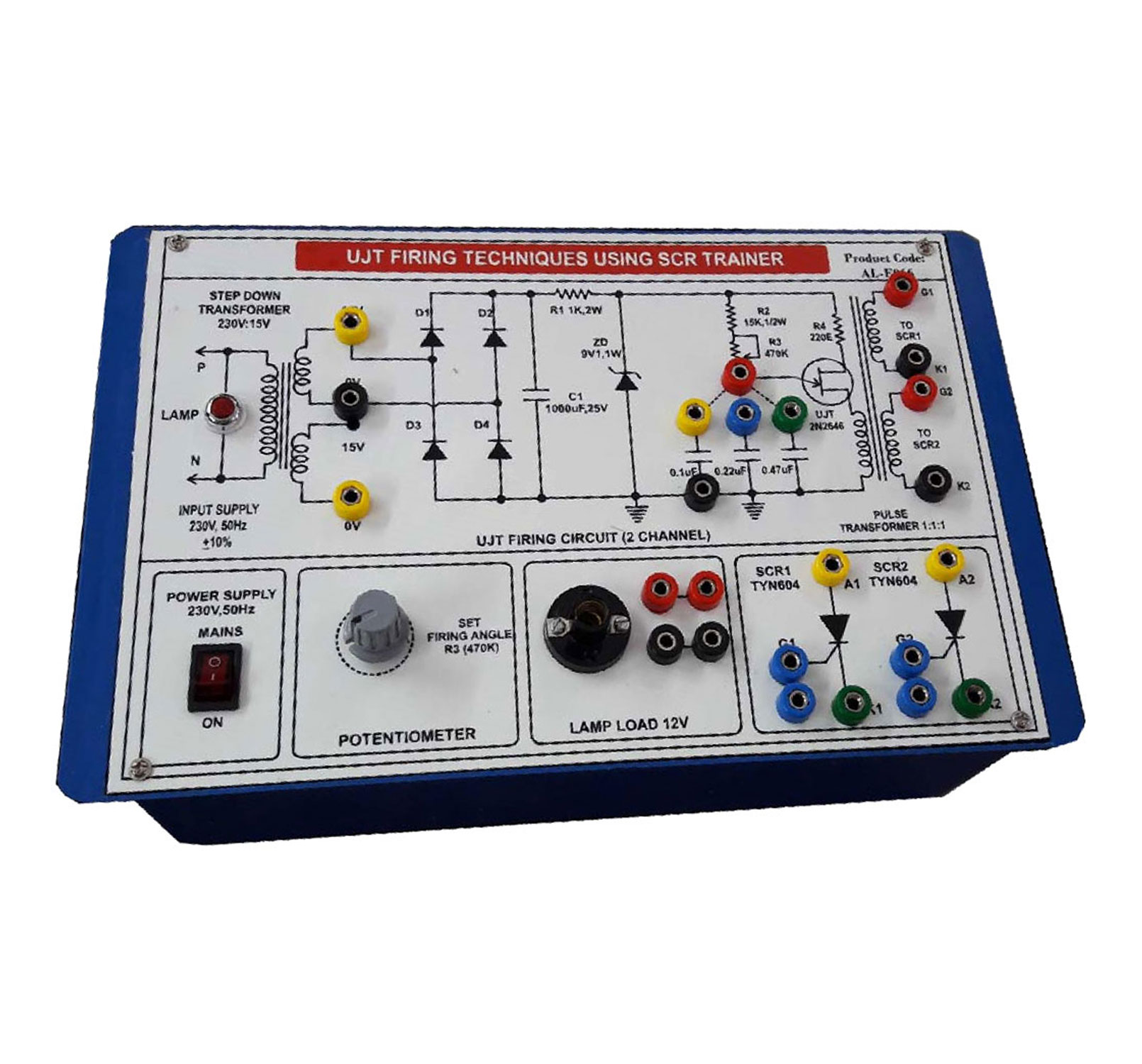

UJT FIRING OF SCR TECHNIQUE

  • Fuse for Short Circuit protection
  • Front panel built with high class insulated Printed Circuit Board sheet with well printed circuits and      symbols.
  • Instruction manual.
  • Patch Cords 2mm Both.
  • High Voltage Test Points are Provided With 2mm Sockets
  • The trainer is housed in ABS Plastic Cabinet.
  • Size of the trainer set 12″X8″
Category:

Description

Specifications

Power Supplies:

  • Isolated AC Power Supply 0-12, 500mA
  • Isolated AC Power Supply 0-12, 250mA
  • Operated on Mains power 230V, 50Hz +10%

Components are mounted on the panels are:

  • SCR TYN604 Assembly (2Bit)
  • Resistive Load (12V Lamp)
  • UJT 2N2646
  • Pulse Transformer:1:1:1
  • Firing Angle Control through Potentiometer
  • Diodes, Capacitors and Resistors

Accessories

  • CRO
