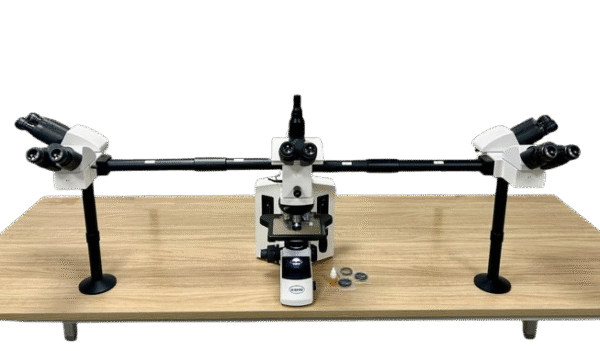

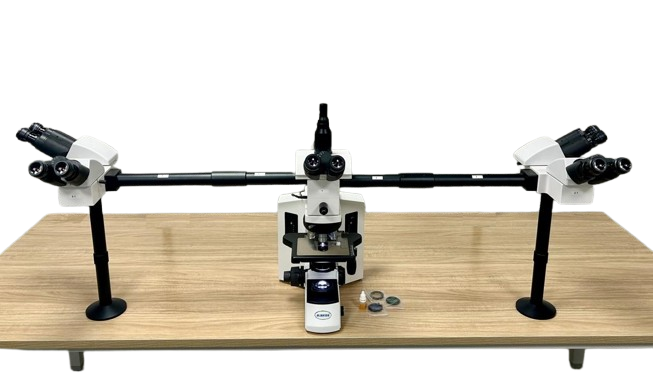

X-555 Plus

Description

1. Observation System
• Type: Brightfield observation.
• Upgradability: Upgradable to Fluorescence, Phase Contrast, and Darkfield.
• Part No.: X555P-OBS-01
2. Microscope Body
• Upright microscope body with intelligent sextuple nosepiece and Light Intensity Management
(auto brightness for each magnification).
• Incorporates Fly-Eye Lens optical system.
• Image capture button provided to directly capture multiple images.
• Automatic shut-off when not in use for prolonged time.
• LCD display showing magnification and brightness settings (desirable feature).
• Part Nos.: X555P-BODY-02 to X555P-BODY-06
3. Optical System
• Universal Infinity-Corrected Optical System (UIS).
• Part No.: X555P-OPT-01
4. Illumination
• High-luminescence 14 W white LED illumination with ³100,000-hour life.
• Brightness equivalent to 12V/100W halogen lamp.
• Part Nos.: X555P-ILL-01, X555P-ILL-02
5. Eyepieces
• Pair of 10X eyepieces with 25 mm Field of View for all 5 heads.
• Diopter adjustment on both eyepieces for all viewing heads.
• Part No.: X555P-EYE-10X
6. Focus System
• Coaxial coarse/fine focusing mechanism.
• Focusing stroke: 30 mm.
• Coarse: 9 mm/rotation; Fine: 0.1 mm/rotation with 1 μm graduation.
• Torque adjustment provided for coarse knob.
• Part No.: X555P-FOC-01
7. Viewing Tube
• Trinocular viewing tube with simultaneous viewing & imaging (100:0 / 20:80 / 0:100).
• Variable tilting ergonomic design.
• Part No.: X555P-TUBE-03
8. Nosepiece
• Sextuple (6-position) nosepiece with slot for analyzer/DIC slider.
• Part No.: X555P-NOSE-06

9. Mechanical Stage
• Ceramic-coated mechanical stage with double slide holding capacity.
• Travel range: 76 × 52 mm.
• Part No.: X555P-STG-02
10. Condenser
• Swing-out achromatic condenser, N.A. 0.9.
• Suitable for objectives 1.25X – 100X.
• Part No.: X555P-CON-01
11. Objectives
• Plan Achromat 4X (N.A. 0.10, WD 30 mm) – X555P-OBJ-4X
• Plan Achromat 10X (N.A. 0.30, WD 16 mm) – X555P-OBJ-10X
• Plan Achromat 20X (N.A. 0.50, WD 2.1 mm, Transmittance ³80%) – X555P-OBJ-20X
• Plan Apochromat 40X (N.A. 0.95, WD 0.18 mm, Transmittance >80%) – X555P-OBJ-40X
• Plan Apochromat 60X air (N.A. 0.95, WD 0.20 mm) – X555P-OBJ-60X
• Plan Apochromat 100X oil (N.A. 1.45, WD 0.13 mm) – X555P-OBJ-100X
• All Apochromat objectives corrected for chromatic aberration 400–1000 nm.
• Objective Set Part No.: X555P-OBJ-SET

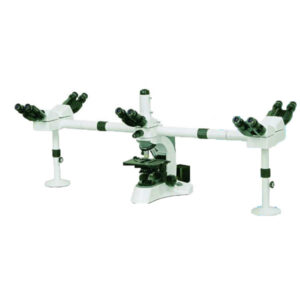

12. Additional Heads
• Penta-head (1+4) configuration — 5 people can view simultaneously.
• Ergonomic tilting binocular heads with 10X eyepieces.
• Dual-color LED pointer (intensity and rotation controllable).
• Part No.: X555P-HEAD-05
13. Polarizer and Analyzer
• Detachable set of polarizer and analyzer.
• Part No.: X555P-POL-01
14. Accessories
• Vinyl dust cover for entire microscope unit.
• Part No.: X555P-COV-01
15. Other Terms and Conditions
• The microscope system, including camera, desktop, and screen, shall carry a
5-yearcomprehensive warranty.
• The microscope, camera, and software are from the same manufacturer.
