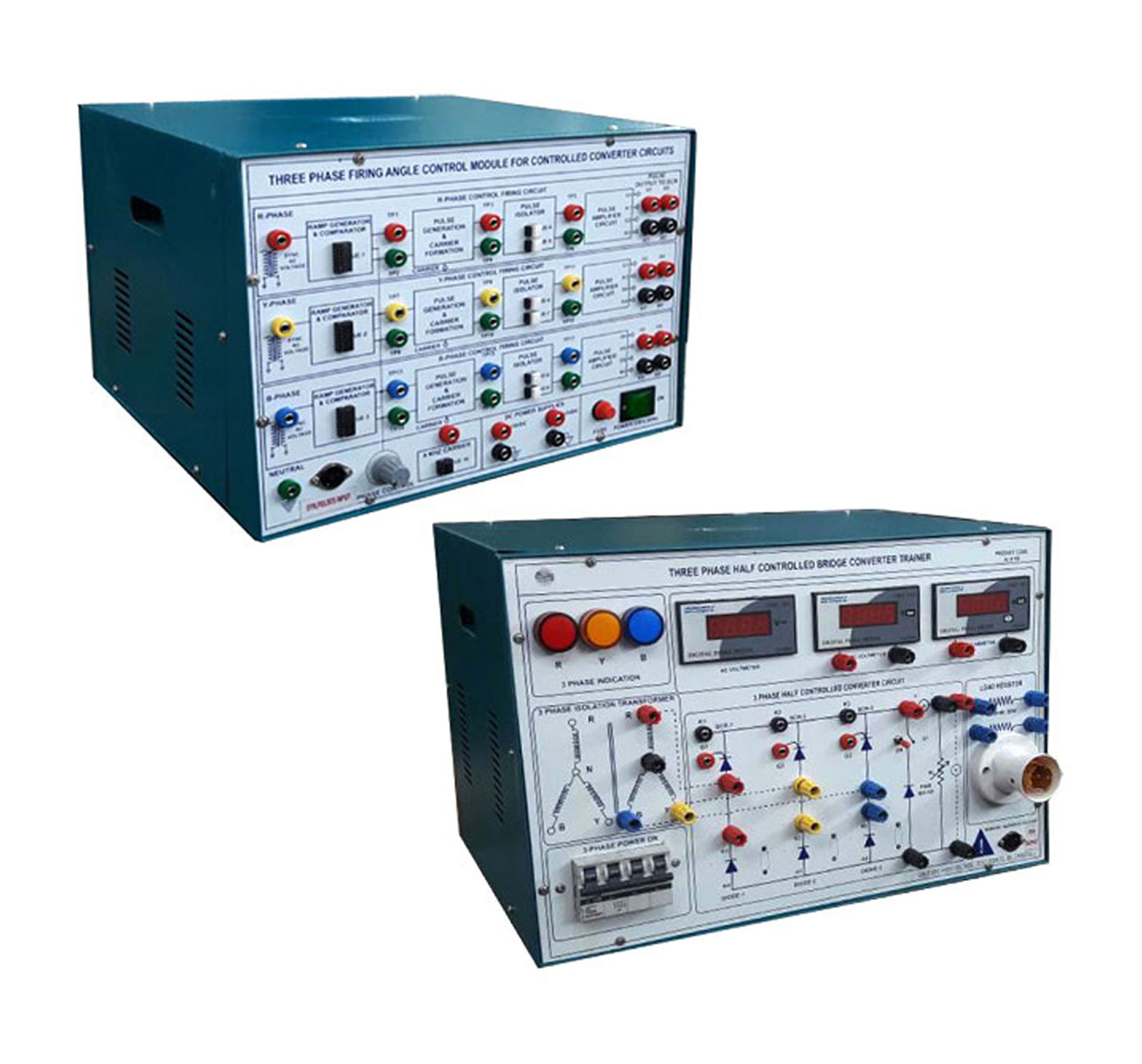

SCR THREE PHASE HALF CONTROLLED BRIDGE CONVERTER

  • Protection Cover
  • Front panel built with high class insulated Printed Circuit Board sheet with well printed circuits and symbols.
  • Fuse and MCB for Short Circuit protection
  • Instruction manual.
  • Connections are brought out through 4mm Colored Sockets.
  • Patch Cords 4mm.
  • The trainer is housed in Metal cabinet.
  • Size of the trainer set 14″X12″ and 18″X12″
Category:

Description

Specifications

Digital Meters:

  • Voltmeter 2000V AC
  • Voltmeter 2000V DC
  • Ammeter 2A DC

Power supplies:

  • Power Supply +15Vat 150mA
  • Isolated Supply 0-110V or 24V AT 1A.
  • Operated on Mains power 415V, 50Hz +10%

Components are mounted on the panels are:

  • SCR TYN604
  • Diode 1N5408 and BA159
  • AC Phase Control by Gate Control Firing Circuit R, Y and B Phases.
  • Resistive Load (Lamp and Resistor 20W)

Accessories

  • CRO
