Description
Specifications
Power Supplies:
- Isolated Supply 0-220V AT 2A.
- Operated on Mains power 230V, 50Hz +10%
Components are mounted on the panels are:
- TRIAC BT136
- DIAC DB3
- AC Phase Control by RC Firing Circuit.
- Snubber Circuit.
Accessories
- CRO

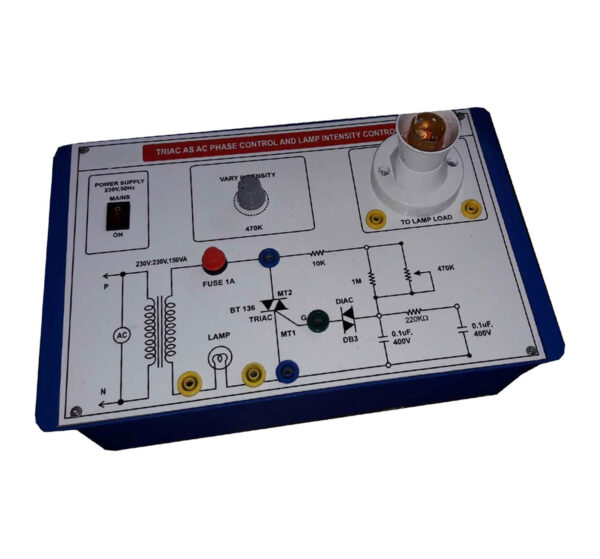

SINGLE PHASE AC PHASE CONTROL BY TRIAC-DIAC
- 10:1 Potential Divider for CRO
- Protection Cover
- Bulb As Load
- Front panel built with high class insulated Printed Circuit Board sheet with well printed circuits and symbols.
- Instruction manual.
- Patch Cords 4mm Both.
- High Voltage Test Points are Provided With 4mm Safety Sockets
- The trainer is housed in Metal cabinet.
- Size of the trainer set 12″X8″
